The Z-4052 (The Regency) Spa and swimming pool
Controller is a micro-controller based system designed to provide the user with
an efficient and effective way of managing their enjoyment time while using either their spa and/or swimming pool. It has been designed to
provide the user with the ability to program all the parameter of the system
with minimum effort.
The system configuration presented in this document is only one of the many it that we could provide you with.

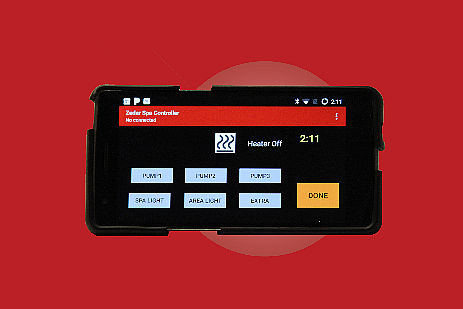

This is a Bluetooth application that allows the user complete control of all the functions associated with the operation of the spa with the help of an Android phone.
It eliminates the costly repair of a display board attached to the spa.

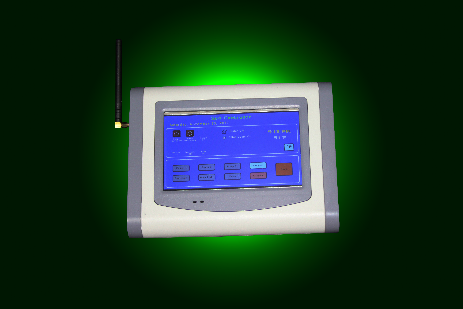

Wireless Control Panel:
The control panel could be desk or wall mounted at a distance no greater than 100 meters (approximately 300 feet) from the controller, it will allow the user the ability to program all the inner parameters of the system as well as time and date. It will also allow the user to control all the function available for the operation of spa and/or swimming pool.
Some of its features are:
7” TFT color display.
Desk or wall mount.

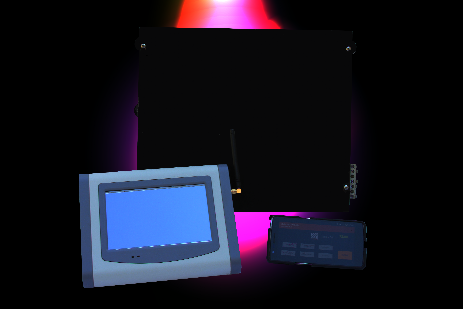

Spa/Swimming pool controller System:
This controller board has been designed for installation below the Spa' skirt. It provides the user with the following features:
Control for (2) 2 speed pumps and (1) single speed, circulating pump, ventilation fan, spa lights, landscaping lights, extra outlet control and heater control.
Wireless connection to panel board.
Bluetooth connection to Android phone.
Input switch for direct pump 1 control if needed.
Temperature sensor, high temperature sensor and flow switch sensor.
120 or 240 Vac +/- 10%

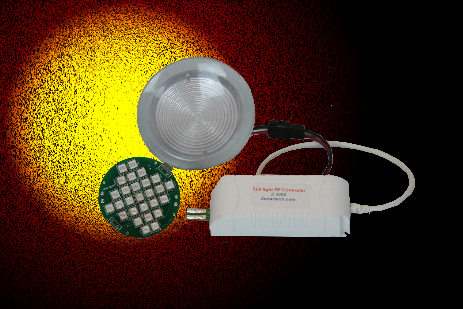

RGB Spa light:
This spa light uses a Bluetooth application that allows the user to set the desire color or sequence of colors for the spa. It could be used with our controller or any other controller that provides either 12 Vac or 12 Vdc to the spa light.
